Courtyard Pointe II
751 East Quality Drive
American Fork, UT 84003

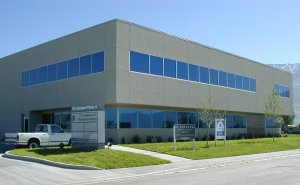

Exterior Photo 1 (JPG,575x342,28.7k)
Exterior Photo 2 (JPG,575x431,30.4k)
Computer Floor Photo (JPG,575x431,54.1k)
Lobby Photo(JPG,575x431,30.7k)
View Complete Specifications

Leasing Contact: Fred Kesler

Phone (801)224-9011
FAX (801)764-2333
Mobile (801)372-1957
E-mail FredKesler@Prudential.com

Completion Date: May, 2001
Rentable Square Feet: 28,257 sq ft.
Structure: Steel structure with wood joist and deck designed to 1997 U.B.C.
Exterior: EFIS stucco.
Glazing: Visteon Versalux Blue 2000 R reflective, blue color.

Lobby Finishes:
Floors: TBD.
Entry: Two story glass structure.
Lobby Stair: Modern, open steel stair structure with stainless steel cable rail and concrete treads. Carpeted.
Entry Doors: Each entry has a pair of 3-0-7-0 glass doors.
Lighting: Recessed lighting within a soffited ceiling.

Typical Floors:

2.5" raised computer floor in all office areas by SMED with carpet.
Column spacing: 30 foot spacing.
Elevator: 2500 LB. Elevator with satin stainless finish.
Ceiling: Common areas: 2x2 white acoustical tiles; drywall ceiling in lobby entry;
Office areas: 2x2 white acoustical tiles.
Doors: Entries to offices: 3-0 x 7-0; interior offices are 3-0 x 7-0 Birch veneer with painted steel frames.
Finish Hardware: Yale "D" series with satin chrome finish.
Lighting: First Floor: Suspended White Lighting by Corelite with energy efficient T-8 lamps and electronic ballasts. Second Floor: 2 x 4 recessed parabolic fluorescent fixtures with energy efficient T-8 lamps and electronic ballast.
Windows: Visteon Blue, reflective blue in color, 36 inches from floor.
Ceiling Height: 9-0 feet.
Restrooms: Porcelin tile floors and wainscot on walls.
Kitchenette: Sink with disposal, microwave, refrigerator and sitting area.

Mechanical, Electrical and Plumbing:
Cooling: Twelve large rooftop units, 84 Tons cooling capacity, VVT system.
Electrical: 1200 amps, 3 phase per building.

Designed for easy access of phone and fiber requirements. Multiple underground conduits provided for choice of telecommunication purveyors.

Life Safety Systems:
Fire Detection and monitoring: Monitored 24 hours a day by a central station.
Notification: Horns and strobes.
Exiting: Four fire rated exits and three fire rated exit stairwells per building.
Security: After hours access: Card reader system controlling access.
Tenant Security system: Routing and power prewired.
